ENDO-MATE DT2 has been developed for use with most major brands of Ni-Ti files.
The preprogramming function allows highly efficient treatments using different file manufacturer's protocols.
The control unit has been designed to be lightweight and compact.
It is fitted with a rechargeable battery providing high mobility. The lightweight and slim handpiece allows easy and comfortable handling for high performance.

Technology & Function

  • 2 way power source
    2 way power source

    ENDO-MATE DT2 has been designed to work with a rechargeable battery for portable use or can be powered using the AC adaptor supplied.

  • Push type ultra miniature head
    Push type ultra miniature head

    Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of treatment spots.

  • Compatible all popular brands of Ni-Ti files
    Compatible all popular brands of Ni-Ti files

    Compatible all popular brands of Ni-Ti files.
    Up to 9 settings (speed and torque etc) can be programmed simply by pushing the memory function button. It's easy to switch between each preset program allowing work with all popular Ni-Ti file manufacturer's protocols.

  • 6 head angles for ease of treatment
    6 head angles for ease of treatment

    Depending on the position of treatment site, the head angle can be adjusted to the best angle.

  • Quick coupling
    Quick coupling

    Quick coupling allows for easy head exchange.
    All heads are autoclavable up to 135˚C.

  • 2-way ON/OFF switch
    2-way ON/OFF switch

    Features are :
    A: Push and release
    - Micromotor operates continuously until the button is pushed again.
    B: Push and hold
    - Micromotor operates continuously until the buton is released.

ENDO-MATE DT2

ENDO-MATE DT2

ENDO-MATE DT2 with 20:1 Head

  • Model:ENDO-MATE DT2 (230V)
  • Order Code:Y1004230

Contents

  • Control unit
  • Motor and cord
  • MP-F20R head (20:1)
  • Handpiece stand
  • AC adaptor

ENDO-MATE DT2 without Head

  • Model:ENDO-MATE DT2 W/O (230V)
  • Order Code:Y1004231

Contents

  • Control unit
  • Motor and cord
  • Handpiece stand
  • AC adaptor

Specifications

  • Power Supply
  • 230V 50/60 Hz and Battery pack
  • Number of Programs
  • 9
  • Max Torque
  • 7 Ncm (when using 20:1 head)
  • Speed range
  • 100-13,000 min-1(With 20:1, 1:1 geared heads)
  • Charge/Continuous use
  • 5 h / 2 h (depending on workload)
  • Dimensions
  • W 93 x D 147 x H 100 (mm)
  • Weight
  • Unit 440 g / Motor handpiece and Cord 95 g

Heads

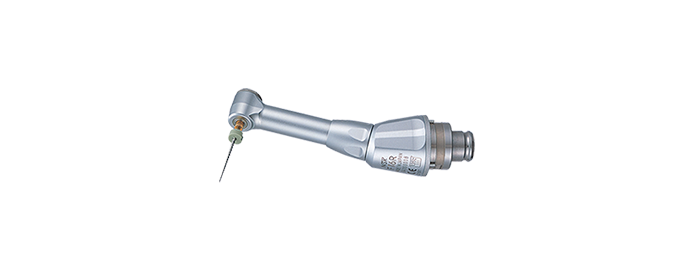

MP-F20R / MP-F16R

  • Heads – DT2
    • Model:MP-F20R
    • Order Code:Y110044
    • Model:MP-F16R
    • Order Code:Y110096

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / 360° Rotation
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck

MPA-F20R

  • Heads – DT2
    • Model:MPA-F16R
    • Order Code:Y110097

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Long Shank)
    • Gear Ratio
    • 16:1 Reduction

    Features

    • Push Button Chuck

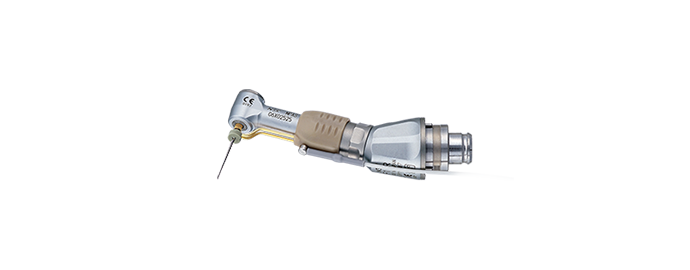

MPAS-F20R / MPAS-F16R

  • Heads – DT2
    • Model:MPAS-F20R
    • Order Code:Y110046
    • Model:MPAS-F16R
    • Order Code:Y110098

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Short Shank)
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck
