Shorter, lighter and
more powerful
consistently
excellent performance

Technology & Function

  • Shorter & Lighter

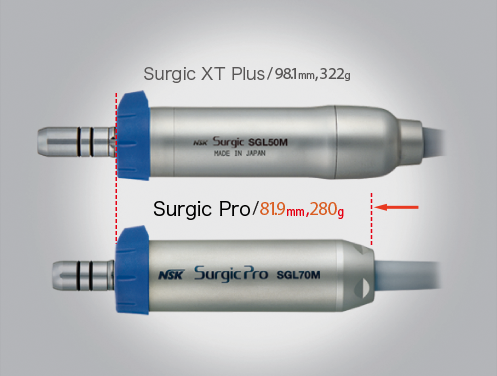

    Shorter & Lighter

    This new surgical micromotor is 16.2mm shorter and weighs 42g less compared to the conventional optic surgical micromotor.

  • LED

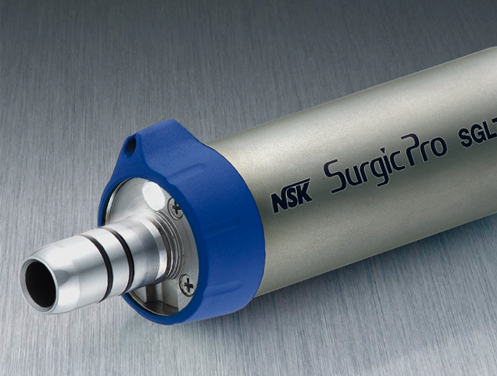

    LED

    LED illumination helps the clinicians to focus more easily on the treatment area and contributes to precise surgery

    Clearer : LEDs generate natural daylight quality light which gives clearer vision when compared to halogen light.

    Durable : LED light sources are longer lasting and more durable than halogen bulbs.

  • Advanced Handpiece Calibration

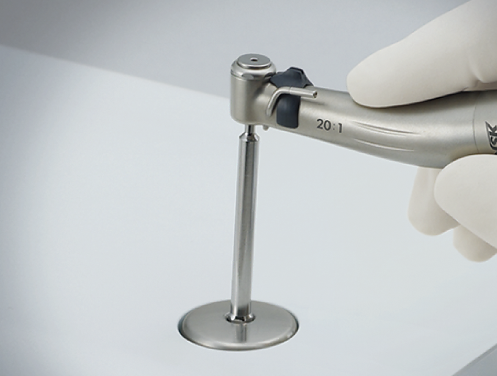

    Advanced Handpiece Calibration

    Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.

  • USB Memory & Data

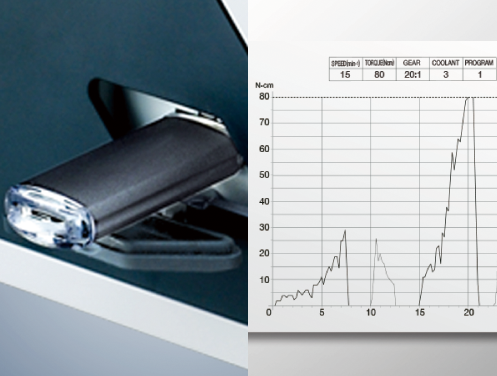

    USB Memory & Data

    Treatment data can be accessed and downloaded using a USB memory stick.
    You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
    *memory stick isn't included.
    *only SurgicPro+

  • Foot Control

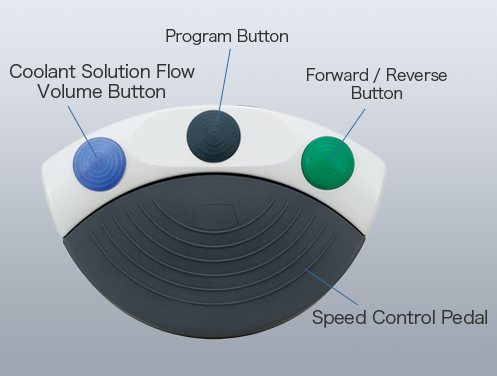

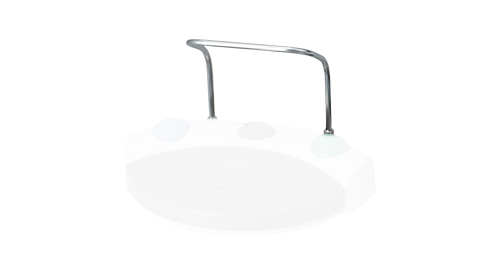

    Foot Control

    The Foot Control is user friendly and allows operation of all functions within the preset parameters without touching the control panel to avoid accidental activation of the micromotor outside the preset limits. The Surgic Pro/Surgic Pro+ is certificated according to IPX8.

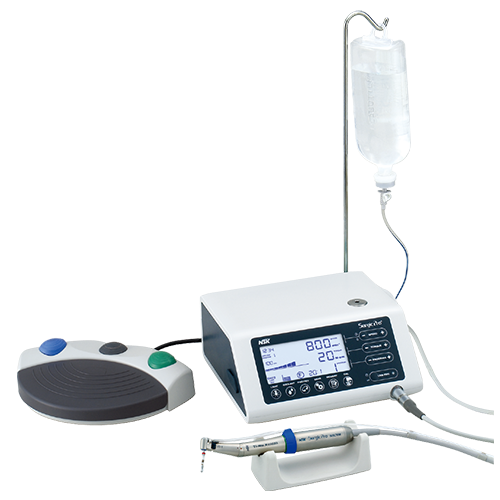

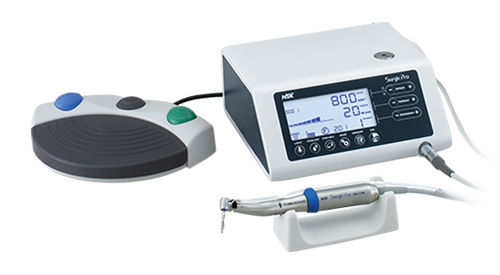

Surgic Pro+

Surgic Pro+

  • Optic
  • Model:Surgic Pro+ OPT-D (230V)
  • Order Code:Y1003585

Specifications

  • Power Supply
  • AC 230 V 50/60 Hz
  • Max. Pump Output
  • 75 mL / min
  • Programs
  • 8 Programs / Implant Systems
  • Dimensions
  • W 268 x D 220 x H 100 mm
  • USB I/F
  • 1 Port
  • Built in Memory
  • 100 min
  • Torque
  • 5-80 Ncm
  • Motor Speed
  • 200-40,000 min-1
  • Light Power (LED Micromotor)
  • Over 32,000 LUX
  • Foot Control Functions
  • Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button

Contents

  • Control Unit with Data Storage Facility
  • SGL70M LED Micromotor
  • FC-78 Foot Control
  • X-DSG20L Optic Handpiece (20:1 Reduction)
  • Irrigation Tube (5 pcs.) and Other Accessories

Surgic Pro

Surgic Pro

  • Optic
  • Model:Surgic Pro OPT (230 V)
  • Order Code:Y1003586

Contents

  • Control Unit without Data Storage Facility
  • SGL70M LED Micromotor
  • FC-78 Foot Control
  • X-SG20L Optic Handpiece (20:1 Reduction)
  • Irrigation Tube (5 pcs.) and Other Accessories

  • Non-Optic
  • Model:Surgic Pro NON-OPT (230 V)
  • Order Code:Y1003587

Contents

  • Control Unit without Data Storage Facility
  • SG70M Non-Optic Micromotor
  • FC-78 Foot Control
  • SG20 Handpiece (20:1 Reduction)
  • Irrigation Tube (5 pcs.) and Other Accessories

Specifications

  • Power Supply
  • AC 230 V 50/60 Hz
  • Max. Pump Output
  • 75 mL/min
  • Programs
  • 8 Programs / Implant Systems
  • Dimensions
  • W 265 x D 220 x H 100 mm
  • Torque
  • 5-80 Ncm
  • Motor Speed
  • 200-40,000 min-1
  • Light Power (LED Micromotor)
  • Over 32,000 LUX
  • Foot Control Functions
  • Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button
