Evolution of PANA-MAX

Pana-Max2 offers much more endurance and power than previous models, while being just as easy to handle. Its sleek design provides maximum visibility of the operating field, easily reaching all areas of the oral cavity.

Technology & Function

  • Unsurpassed Durability
    Unsurpassed Durability

    Built to excel in clinical situations. Featuring a scratch-resistant stainless steel body and sturdier turbine head. Thanks to its uniquely designed shock-resistant head design, Pana-Max2's turbine rotor won't get damaged even if dropped from two meters onto a concrete floor.

  • Exceptional Longevity
    Exceptional Longevity

    Newly designed bearing structure with greater wear resistants and extended lifespan.

  • 30% Power Boost
    30% Power Boost

    Pana-Max2 is dramatically more powerful than its predecessors thanks to the combination of NSK's air turbine simulation technologies. Rated at a maximum of 20 watts, this new model boasts the highest power rating in its class. That concentrated power, along with the bur's high rotational accuracy, creates a synergistic effect that ensures fast, precise treatments.

  • Slim-line Stainless Steel Body
    Slim-line Stainless Steel Body

    Pana-Max2's slim-line body guarantees excellent accessibility to the entire oral cavity. As a result visibility of the treatment area is maximized, allowing you to work with total ef ciency.

  • Interchangeable Cartridge
    Interchangeable Cartridge

    Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

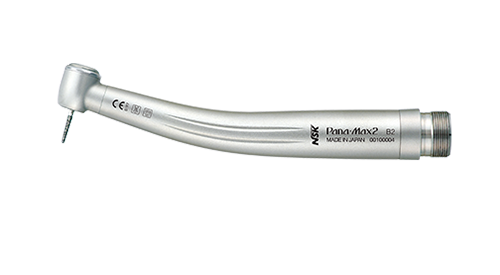

Pana-Max2 PTL

Pana-Max2 PTL

  • Non-Optic
  • Model:Pana-Max2 PTL
  • Order Code:P1211

Specifications

  • Rotation
  • 350,000-450,000 min-1
  • Head Size
  • Ø11.2 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • NSK Ultra Push Chuck
  • Simple Cartridge Change

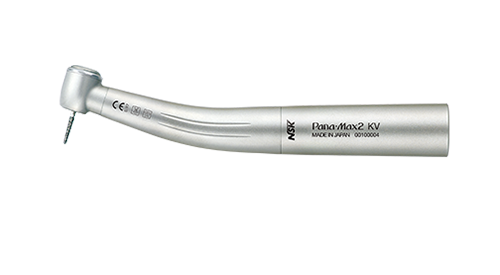

Pana-Max2 KV

Pana-Max2 KV

  • Non-Optic
  • Model:Pana-Max2 KV
  • Order Code:P1212

Specifications

  • Rotation
  • 300,000-400,000 min-1
  • Head Size
  • Ø11.2 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • NSK Ultra Push Chuck
  • Simple Cartridge Change
